Inspection hatch
Our Inspection hatch PEC are designed to meet the cleaning and visual control needs of powder process facilities in the food, chemical and pharmaceutical industries.
These access doors are ideal for demanding environments where cleanliness and safety are essential.
In addition to standard circular access doors, we can also design custom rectangular access doors to perfectly fit your facility’s specifications.

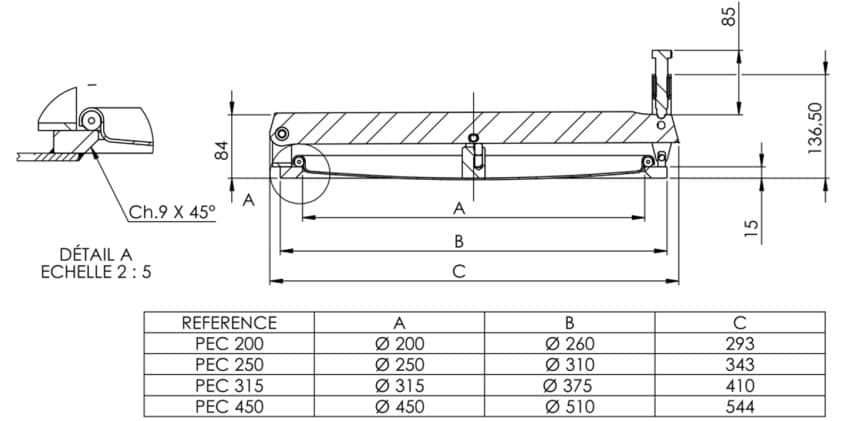

With a useful passage of Ø A, these doors allow easy access for maintenance and inspection of equipment.
This reduces downtime and optimizes the performance of your production process.
With operating pressures ranging from -0.3 to 0.4 bar, these doors can be used in high-pressure environments, ensuring maximum safety for your personnel and equipment.
Made of 1.4404 (316L) stainless steel to resist corrosion and heat, these access doors feature a 30mm thick 15mm flat flange for added strength.
Constructed of 1.4404 (316L) stainless steel for corrosion and heat resistance, these access doors feature a 30mm thick 15mm flat flange for added strength.
M16 screw or lever tightening ensures a solid installation for a longer life of the access door.
Pickled/passivated finish with Ra < 0.8 provides additional weather resistance for continued use in harsh environments.
The food-grade silicone O-ring ensures an optimal seal to prevent contact between the product and the outside environment, guaranteeing the safety of your production process by avoiding any risk of contamination.
Technical specifications
- NUseful passage: Ø A
- NOperating pressure: -0.3 / 0.4 bar
- NFlat flange: 30 mm thick
- NTightening: M16 screw or lever
- NMaterial: stainless steel 1.4404 (316L)
- NO-ring: food grade silicone
- NShape: circular or rectangular made to measure
- NCompliance with current health and safety standards
- NEasy to install and maintain
- NLifetime warranty
